High Head China slurry pump 40ZJ-I-A19 for sand water pump

FOB Reference Price:Get Latest Price
US $775-1,536 / Set | 1 Set/Sets sand water pump (Min. Order)
Supply Ability:
500 Set/Sets per Month sand water pump
Port:
XINGANG PORT
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
NNT
Model Number:
ZJ
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
mining tailing convey, tunnel solids water, sand water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
power or diesel
Pressure:
Low Pressure
Application:
sea sand water, sand water slurry
Type:
sand water pump
Product name:
High Head China slurry pump 40ZJ-I-A19 for sand water pump
Material:
High chrome alloy A05
Model:
40ZJ-I-A19
Inlet/Outlet:
50/40mm
Max power:
15KW
Seal type:
Expeller seal or Gland seal
Max allowable solid diameter:
11mm
Head:
12-58m
Capacity:
Up to 36m3/h
Packaging & Delivery
Packaging Details
sand water pump in exporting plywood case or as customer request
Delivery Time
sand water pump shipped in 7 days after payment

High Head China slurry pump 40ZJ-I-A19 for sand water pump

Product Description



High Head China slurry pump 40ZJ-I-A19 for sand water pump

ZJ series series sand dredging pump is suitable for handing abrasive corrosive solids bearing slurry with maximum concentrations of wt.45%(ash) and wt.60%(ore). They are widely used in power,metalluragical,mining coal and building materials andother sectors. The ZJ series slurry pumps can be oeprated intandem positation according to the requirements of users. After experts in our country evaluated,they all think that the ZJ series slurry pumps lead their domestic counterparts in various technical performance,with most of the approaching the quality,advanced world level in efficiency.

Mode of structure: Including ZJ ,ZJL series pumps. The outlet diameters of the pumps vary from 600mm to                                                  400mm,350mm,300mm,250mm,200mm,150mm,100mm,80mm,65mm,50mm,40mm,25mm etc.



Structure Features: Pump head: The pump centrally split vertical direction. Discharge port can be positioned at                                              8 different positatio at an intercal 45°.



                                 Support : Centrally split in horizontal direction

                                                 Hanging Bracket



                                 Shaft Seal: Expeller seal and packing seal

                                                    Packing seal and Mechanical seal



Driven patterns:  Direct Driven, Direct driven via hydraulic coupling and Belt driven.



Features of use:  1.high efficiency

                             2.Long service

                             3.steady operation

Casting, shaft, throat bush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor,

cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner ,neck ring, expeller ring,

expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller,

closed impeller, open impeller

Performance



Product Application

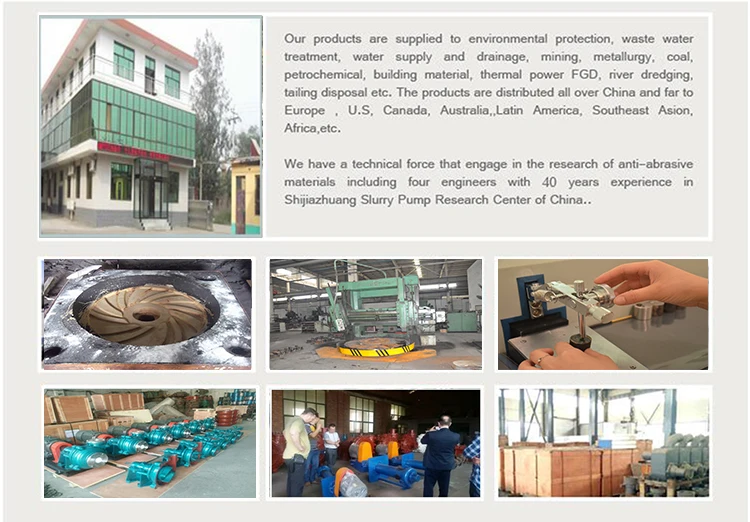

Company Profile



Testing Equipment



Packaging & Shipping

FAQ

Q1.Can you supply pump qualified with ANSI and ASME standard?
A.Yes, our pump compliant with ISO / ASME/ANSI standard.

Q2.How can I purchase order without seeing the quality first?
A.If it is a big order, we can provide a sample for running testing at your plant.

Q3.How do you control the quality of the products?
A.Our production is strictly according to ISO 9001 standard and factory was established in 1980, have over 30 years experience in slurry pumps and parts.

Q4.How to customize pumps and mechanical seals ?
A.Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.

Q5.How can I pay for my items? What is the payment you can provide?
A.Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
L/C at sight

Q6.How long is warranty?
A.year for main construction warranty.

Q7.How long is production leading time?
A.Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.

Q8.What is the shipping terms you can provide ?

A.Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.

Q9.Who is in charge of after-sales?
A.Inside sales. It can save customer's time and high efficiency communicate. NNT has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.

Q10.Who is in charge of maintenance?
A.Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.
