Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: NNT
  • Model Number: G
  • Theory: Centrifugal Pump
  • Structure: Single-stage Pump
  • Usage: sand water pumping
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: power or diesel
  • Pressure: Low Pressure
  • Application: sand dredging
  • Product type: centrifugal water slurry pump
  • Product name: A05 centrifugal water slurry pump for coal mining
  • Material: A05
  • Place of origin: Shijiazhuang city, Hebei Province
  • Warranty: 1 Year
  • Color: Customized
  • Voltage: 380V or 440V
  • Certificate: ISO9001
  • Diesel engine: Available
  • Feature: Large passage

Packaging & Delivery

Packaging Details Slurry pump in exporting plywood case or as customer request
Delivery Time Slurry pump shipped in 7 days after payment

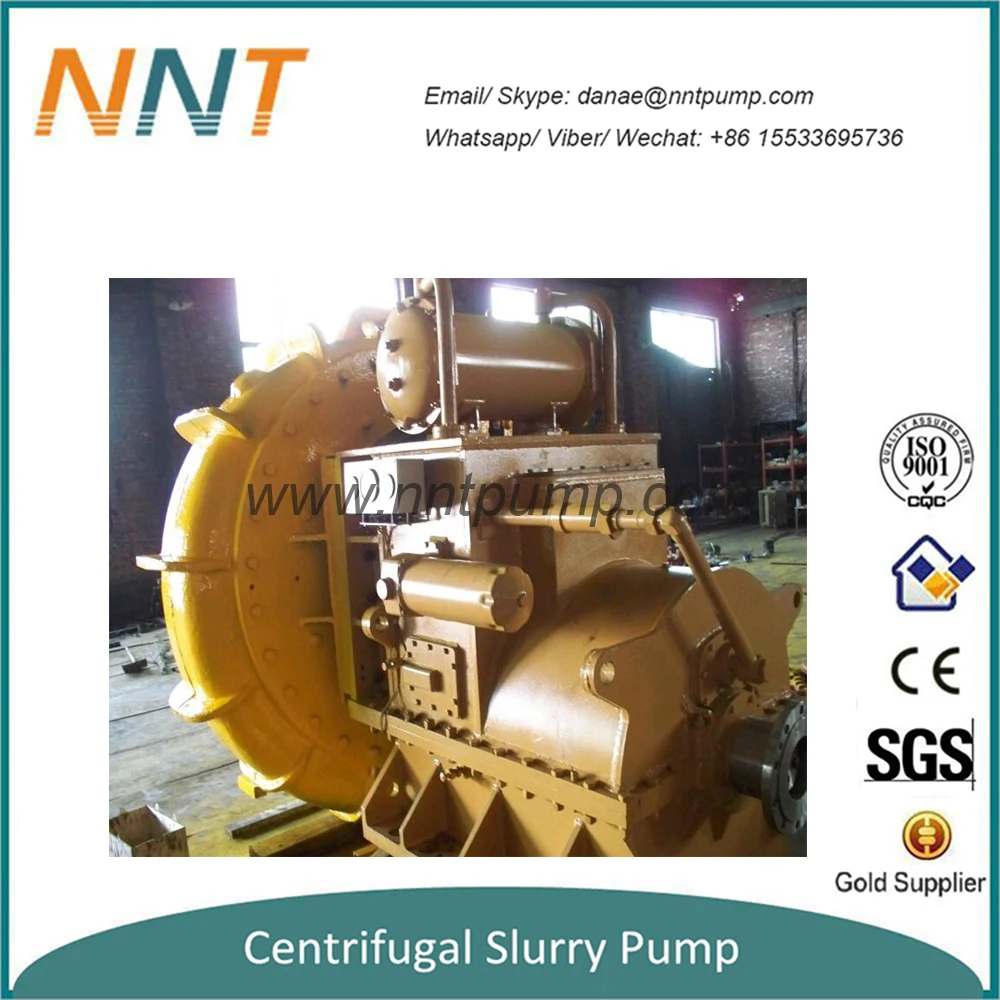

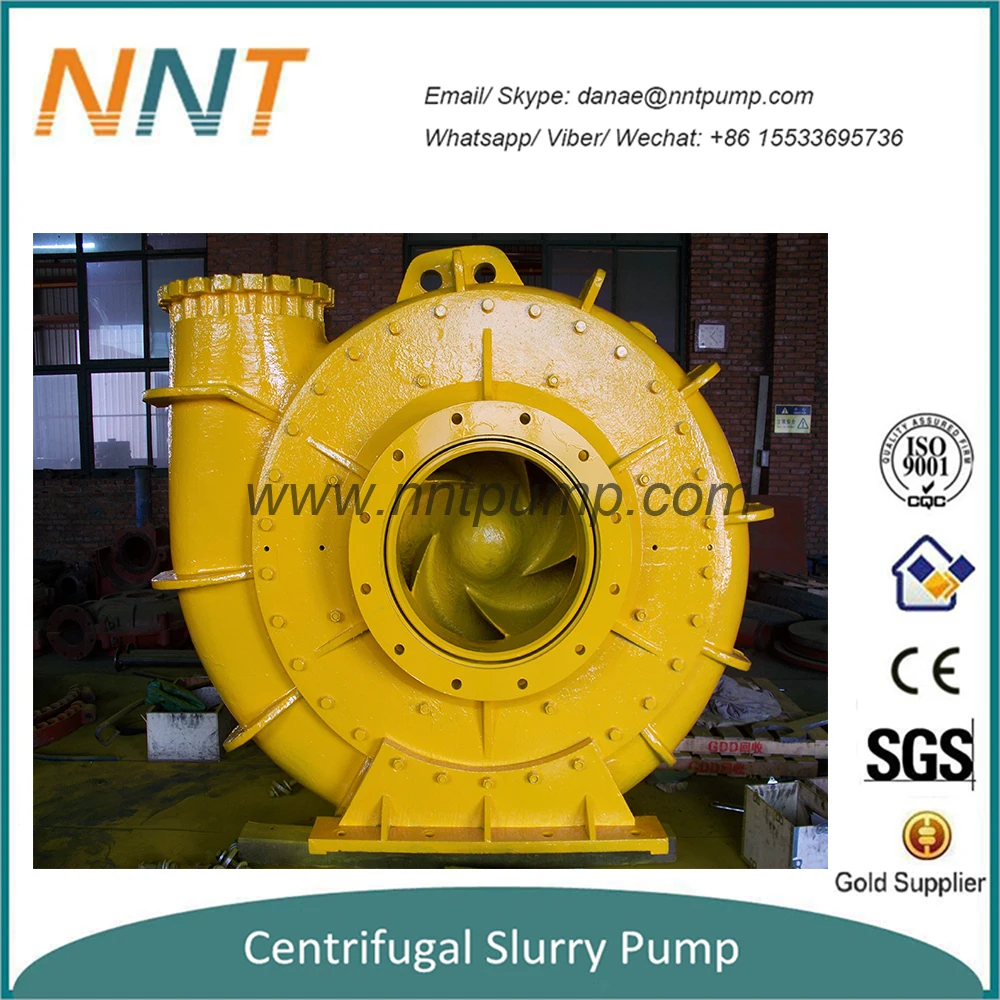

A05 centrifugal water slurry pump for coal mining
Features

 1. Modern CAD design method, excellent hydraulic performance, high efficiency, and low wear rate;

2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;

3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;

4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;

5. Thin oil lubrication metric bearing, rationally sets lubrication and cooling system to ensure that the bearing works at low temperature;

6. Good wear resistance and corrosive resistance; can be used for seawater dusting, and chemical corrosion conditions;

7. Can be used in series in stages, and allowable maximum working pressure is 3.6 Mpa.

Parameters



Materials
 High chrome alloy: A05, A07, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other materials can be supplied as requirements:

Casting, shaft, throat bush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor,

cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner ,neck ring, expeller ring,

expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller,

closed impeller, open impeller
